The 1412 series is a complete water tight wireway system, which is used indoor or outdoors, in areas where the wireway may be subjected to hosing or water coming from any direction. The troughs are Bolt-on and are made of high quality code gauge steel, with welded end flanges. All seams have been continuously welded. Covers are hinged and secure closing is assured by several, quick-release, ¼ turn locks. A high quality, poured-in-place, seamless gasket is installed between the door and trough, and between the sections and accessories to ensure integrity. Components are finished with heat fused powder paint, electrostatically applied on a pretreated base. Finish is ANSI/ASA 61 smooth gray. CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66

Made of high quality code gauge steel. Cross fittings are finished with heat fused powder paint, electro-statically applied on a pretreated base. Paint color : ANSI 61 smooth gray. CSA Certified / UL Listed. NEMA / EEMAC 4, 12. IP66.

Resources

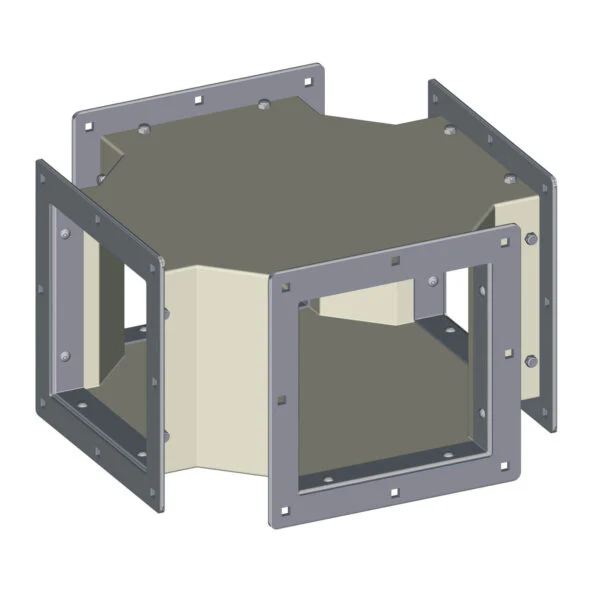

^^The 1412 CF cross fitting for 1412 series pull-through ducts are used indoors or outdoors to protect the enclosed wireway system from dust, dirt, oil and water splashing.
